Compressible Filler Boards for expansion joints


Compliance with International Standards and also with M.O.S.T. Specifications, AAI & MES

Specifications :
Versatile application in roads , runways, buildings, bridges , structures.
Descriptions :
This is a microcellular, closed cell, PE foam Board being manufactured in various grades, size & shapes to meet various requirements of construction industry.
Technical Compliance :
Meets Specification of Highway works As per Vol : I-clause 1015 B.S. 5628 / B.S. Specification clause No. 2630 and (M.O.S.T.) IS 1838*
Advantages :
1) Fuel / Solvent / Water / Good Weather Resistant.
2) Excellent movement accommodations.
3) Negligible water absorption & long life.
Uses :
As a filler material in expansion joints & movement joints of Road, Bridges, Buildings, Tunnels, Water Retaining Structure etc.
Technical Data for H-20 / 100-Grade
Density : 100 ± 10 Kg. / M.³
Tensile strenght : 12 Kg. / sq.cm.
Elongation : 110%
Recovery at 50% compression : average 97% (As per M.O.S.T. test procedures)
Water absorption : 0.02% ( negligible)
Temperature range : - 40 to 100°C
Fuel / Solvent / Chemical resistance : Excellent (Similar to LDPE)
Reaction / adhesion to Sealents : Totally innert with all type of sealent.
Weathering conditions : Passes Weatherability test.
Compression loading : Satisfies B.S. 5628 Code of practice.

Technical Specifications for full range of our
product :
Hardness : 20 ± 5
Density : 100 ± 10 Kg./ M.³
Width : 6 mm. to 1000 mm.
Thickness in mm : 6/10/12/15/18/20/25/30/35/40/45/50
Length : 1m, 2m, 7.5m, 8.5m, 9.5m
Special sizes can also be manufactured on special orders.

Compliance with International Standards and also with M.O.S.T. Specifications
Versatile application in roads , runways, buildings, bridges , structures

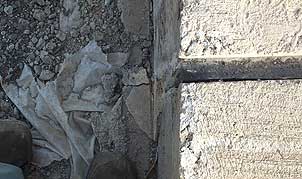

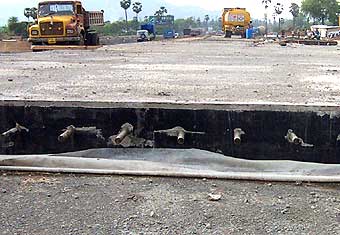

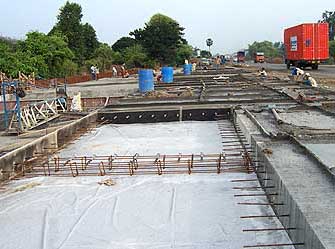

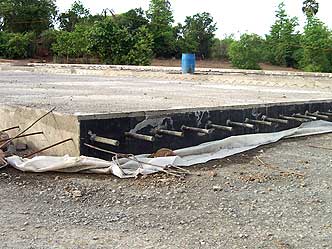

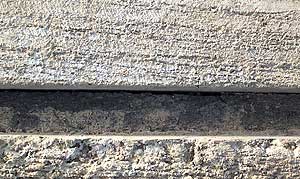

Compressible Filler Boards

Compressible Filler Board

Compressible Filler Boards-1

Compressible Filler Boards-2

Compressible Filler Boards-3


In pursuit of continuous improvement, the technical contents are subject to change without any notice.
